Mobile automatic door Intelligent temperature measurement disinfection channel Ultrasonic atomization infrared ray quickly passes through the disinfection door

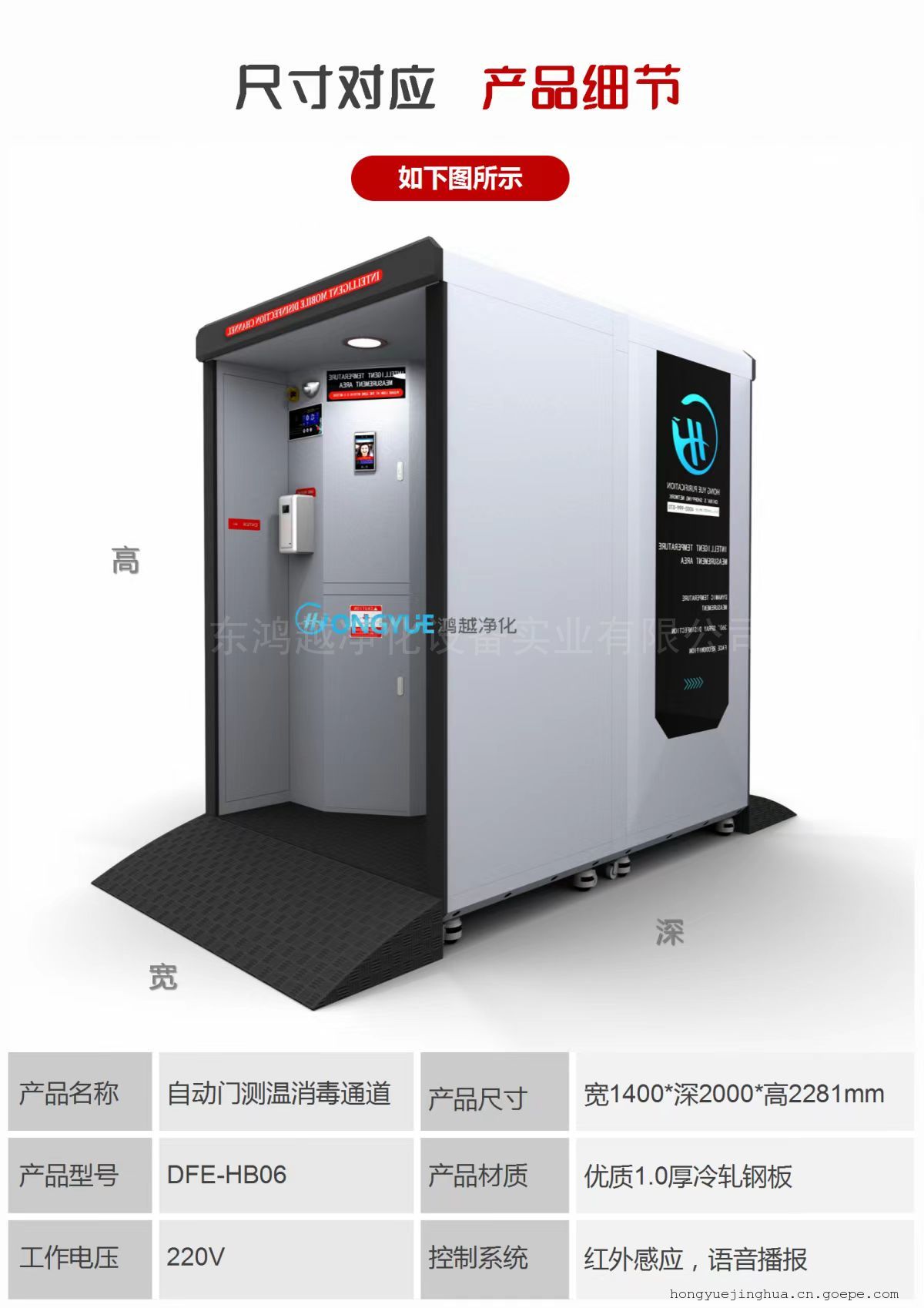

Automatic door temperature measurement disinfection channel model:HB-06
Scope of use Application scenarios:

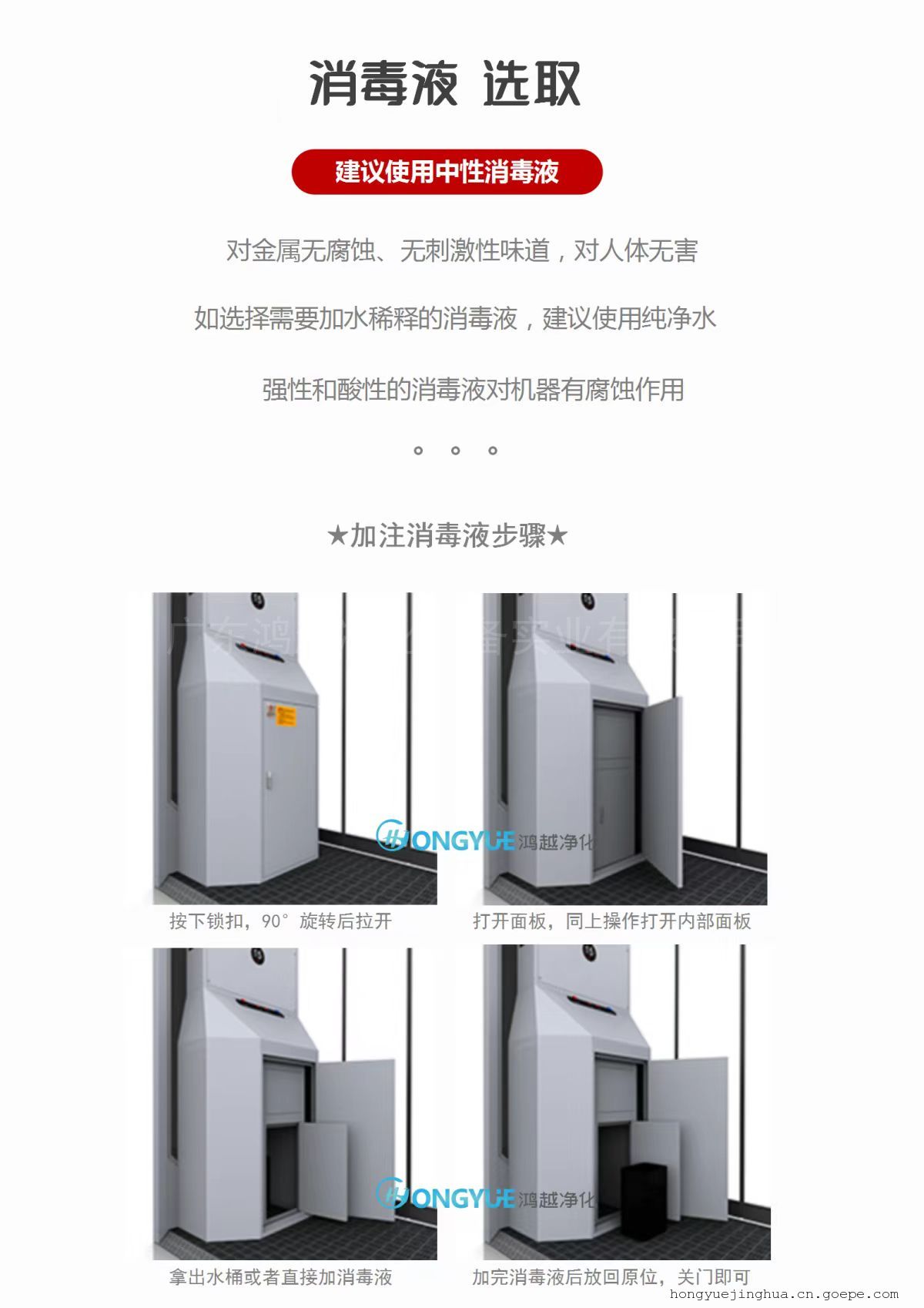

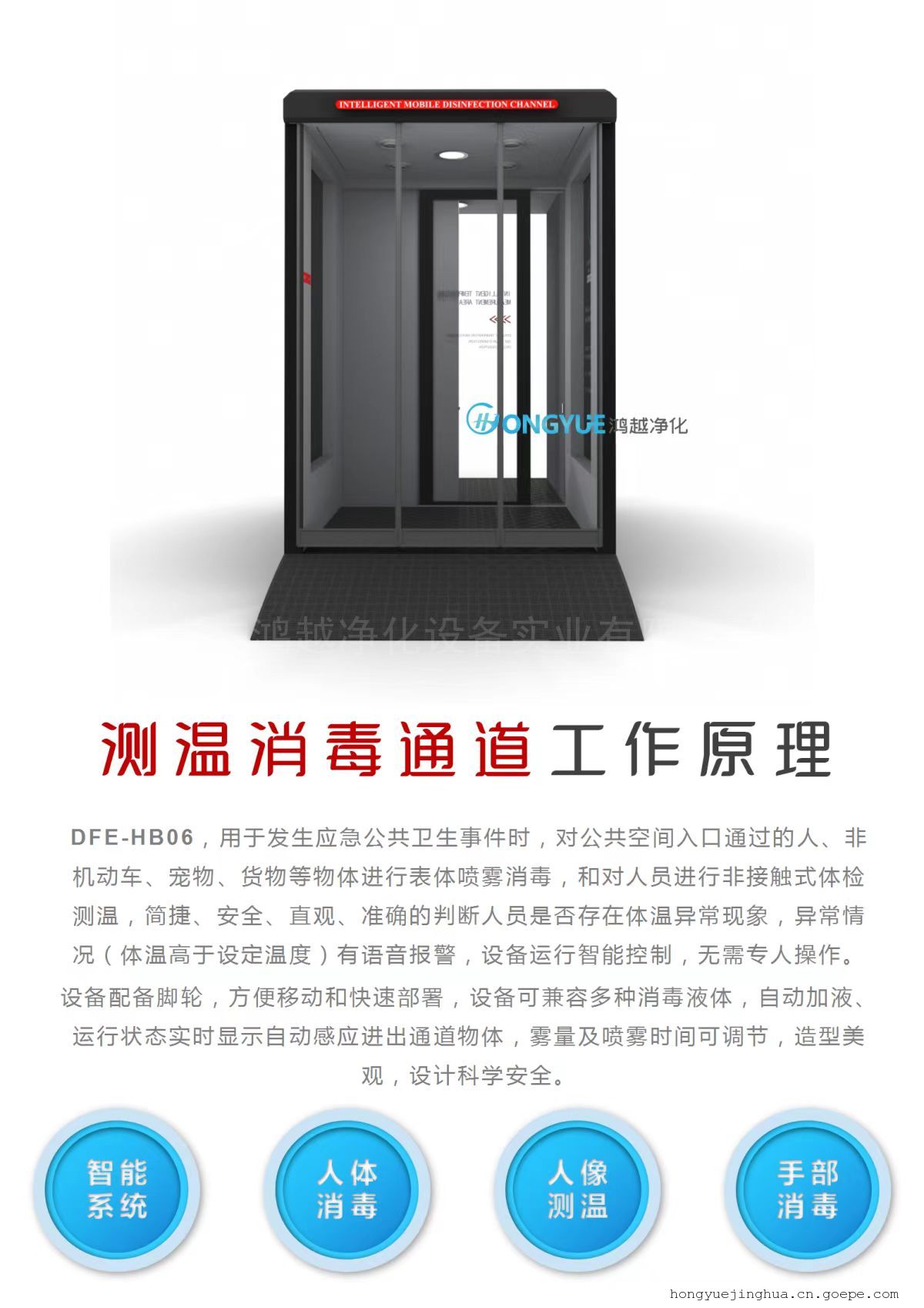

Intelligent mobile temperature measurement and disinfection integrated channel is used to disinfect the surface of people, pet goods and other objects passing through the public space when emergency public health events occur. The equipment uses food-grade disinfectant to ensure personal safety. It is fully automatic and does not need personnel to operate. It is equipped with casters for easy movement and rapid deployment. It is novel in shape and scientific in design to protect your health.

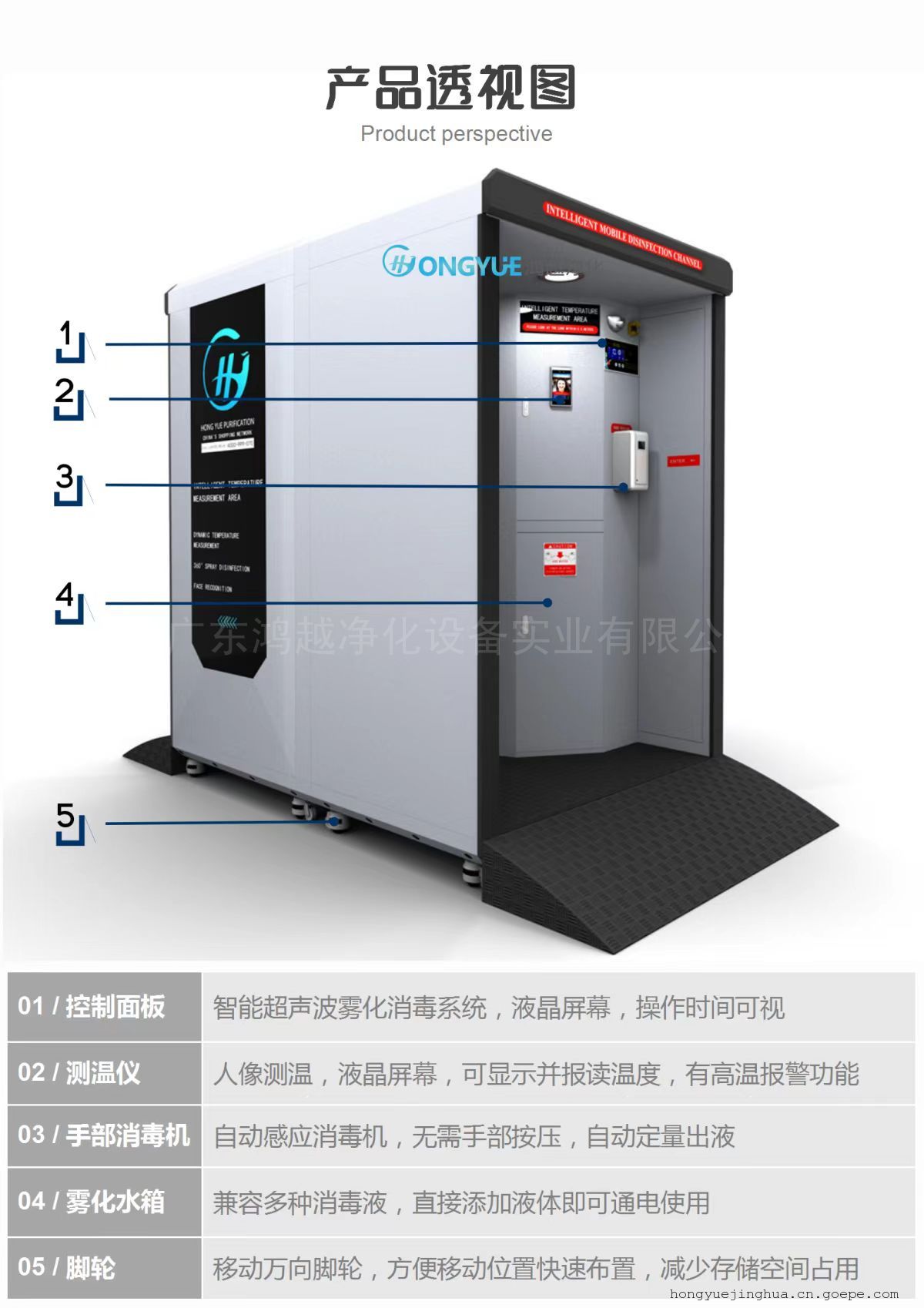

product features

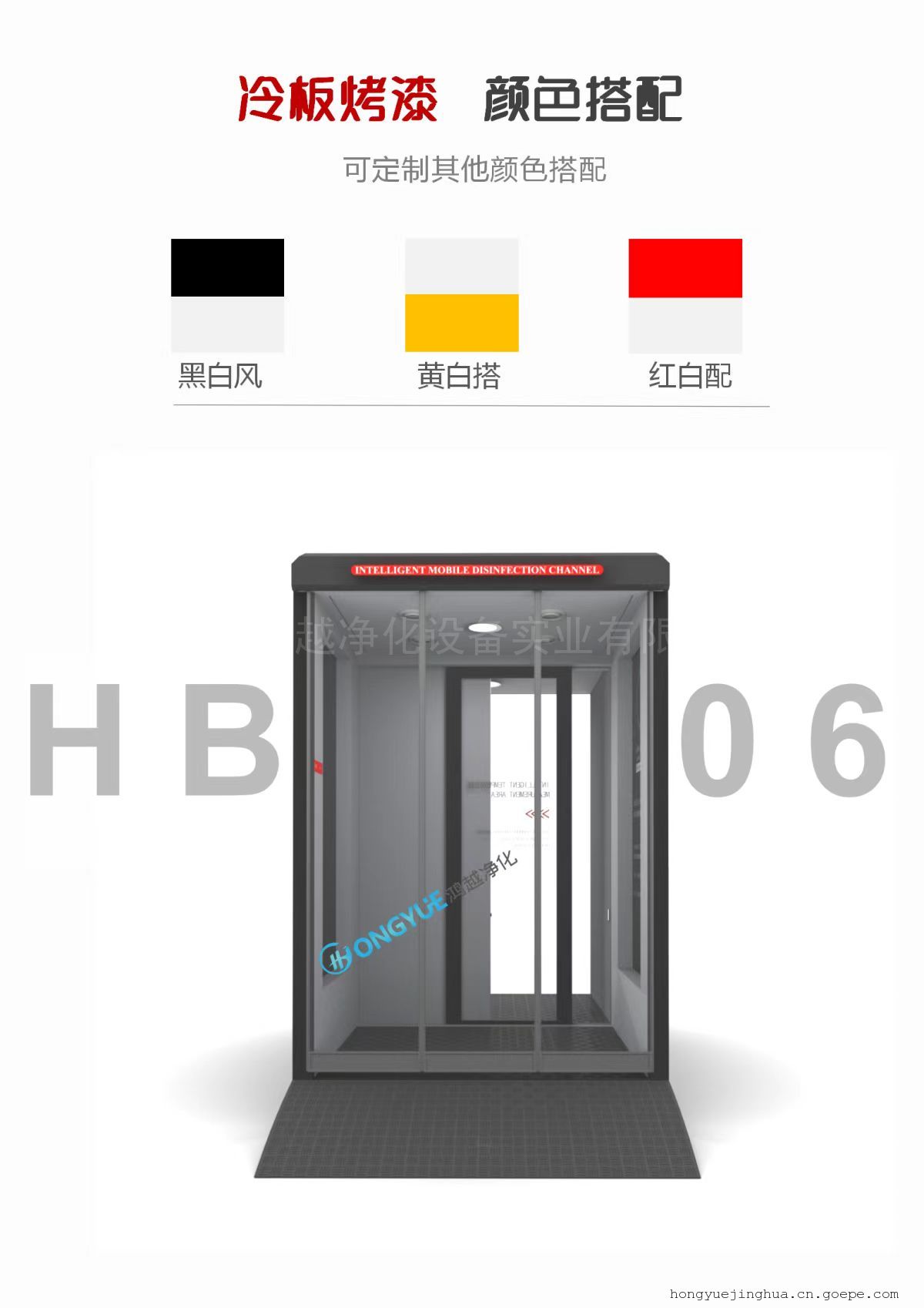

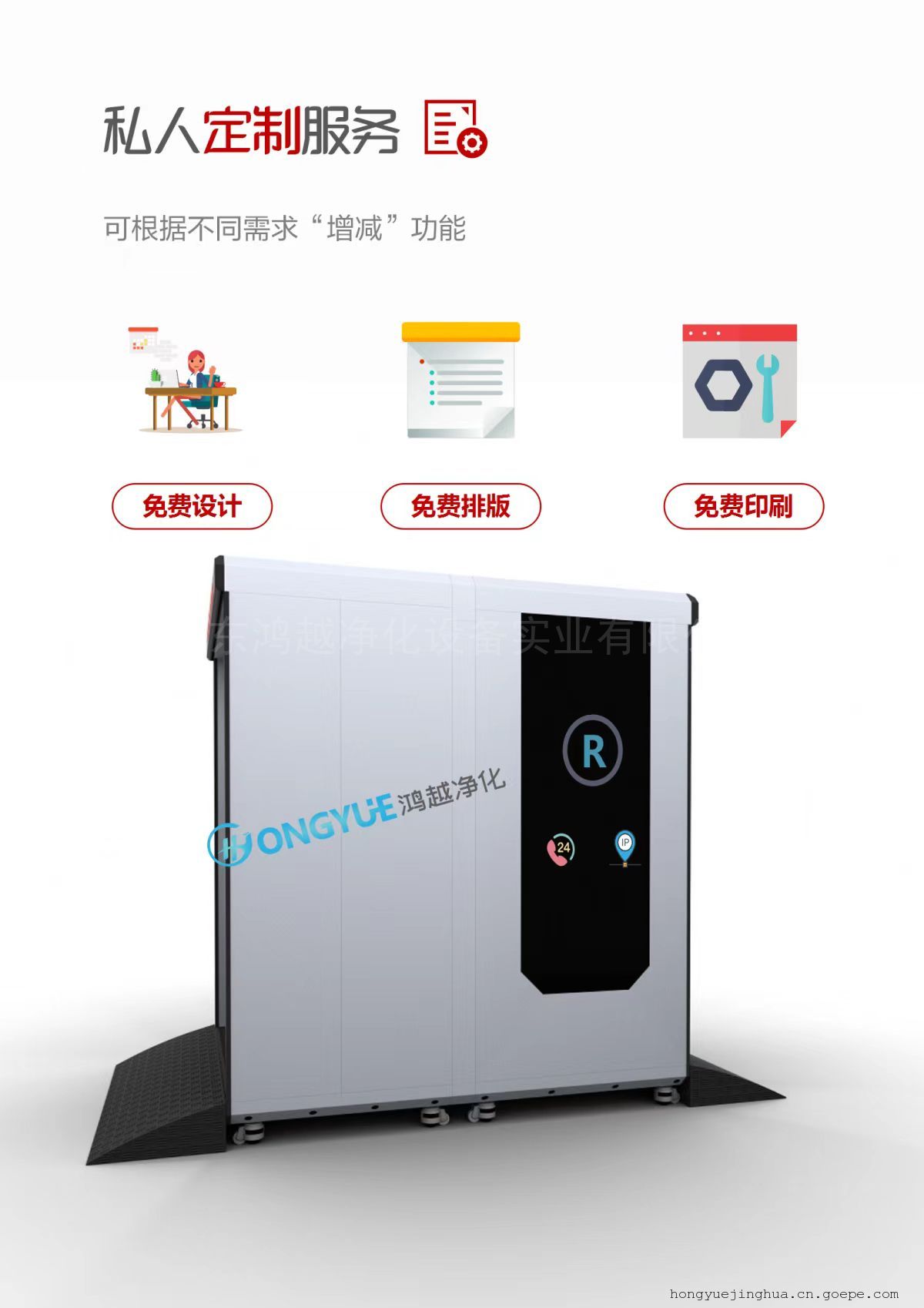

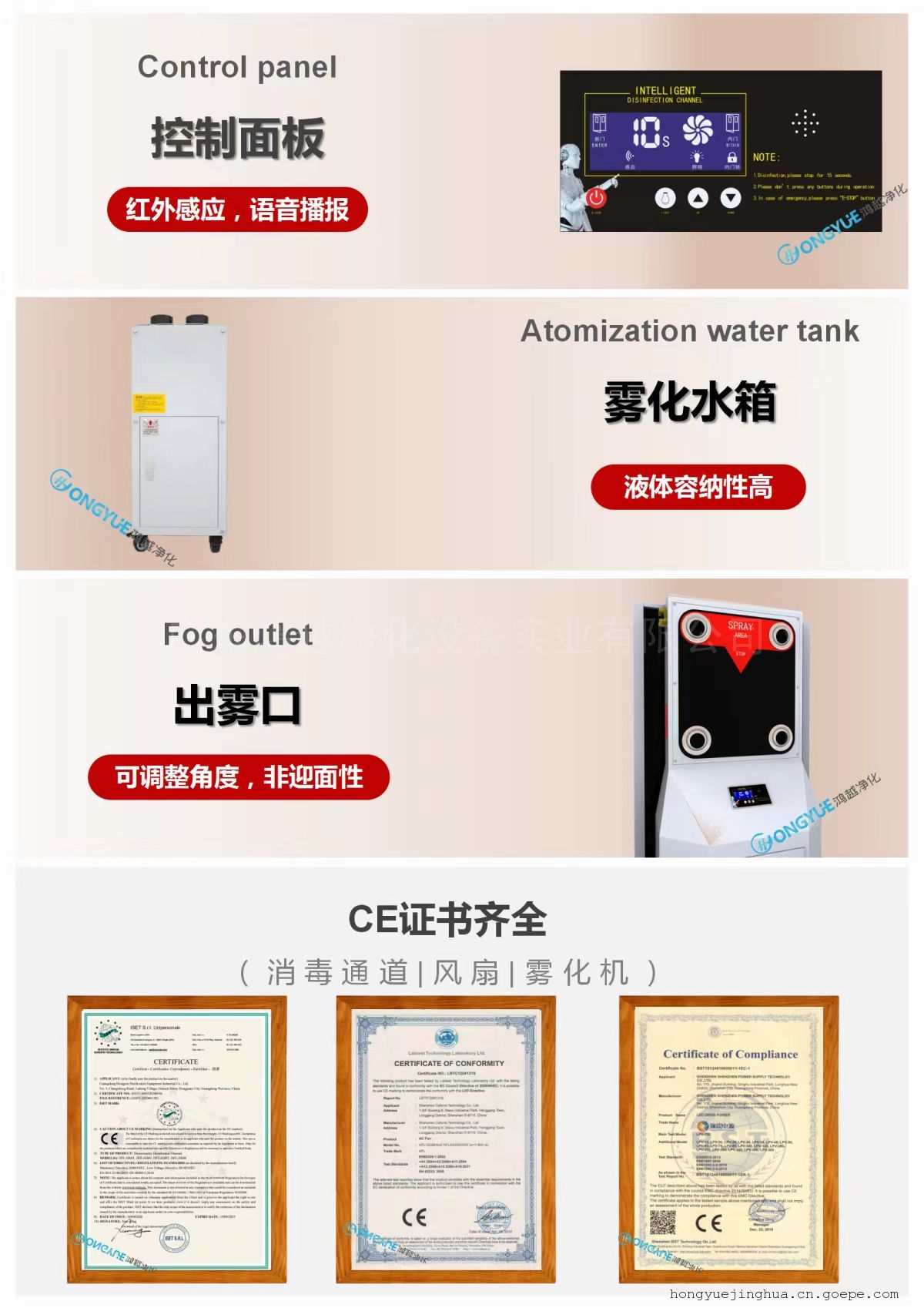

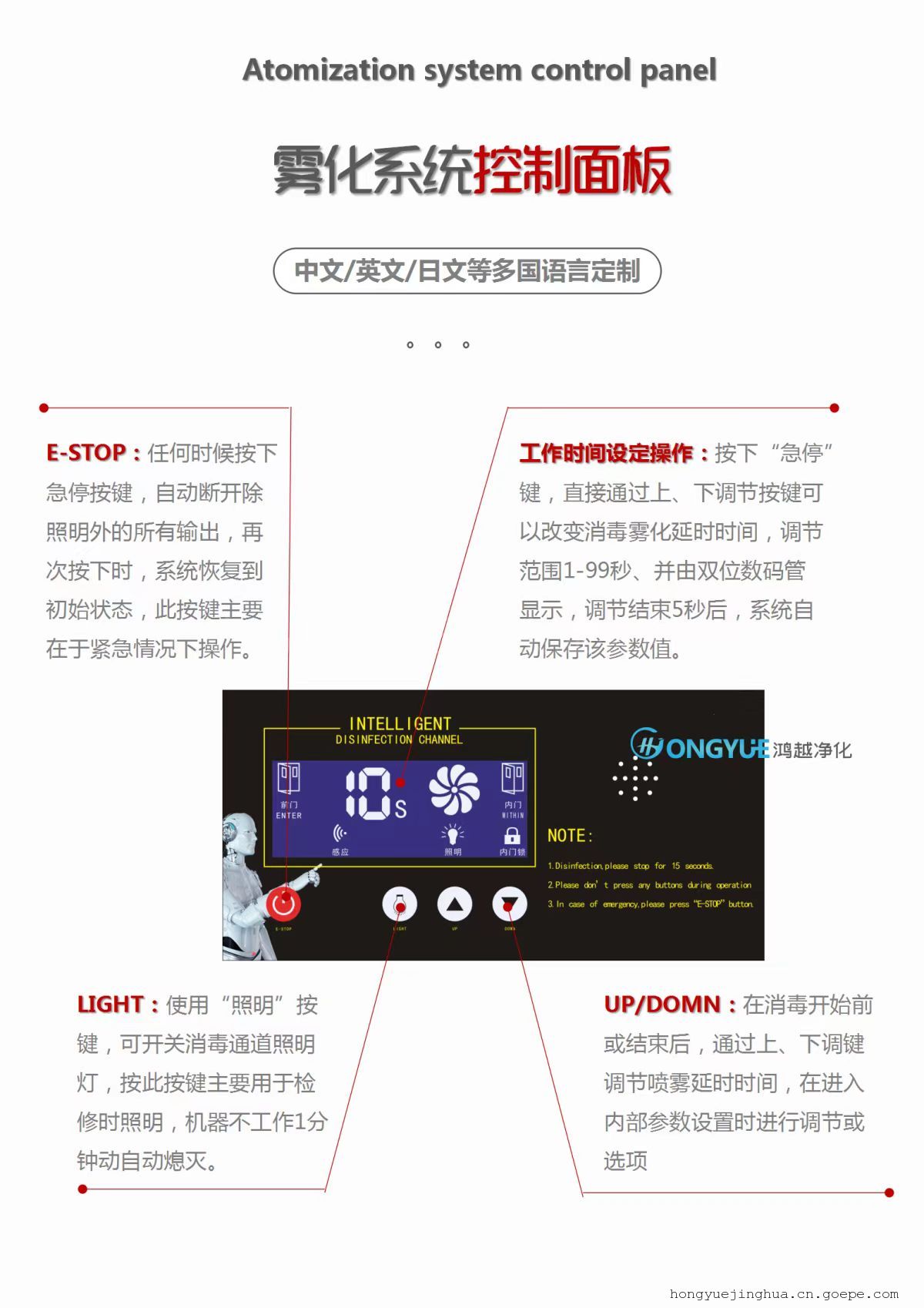

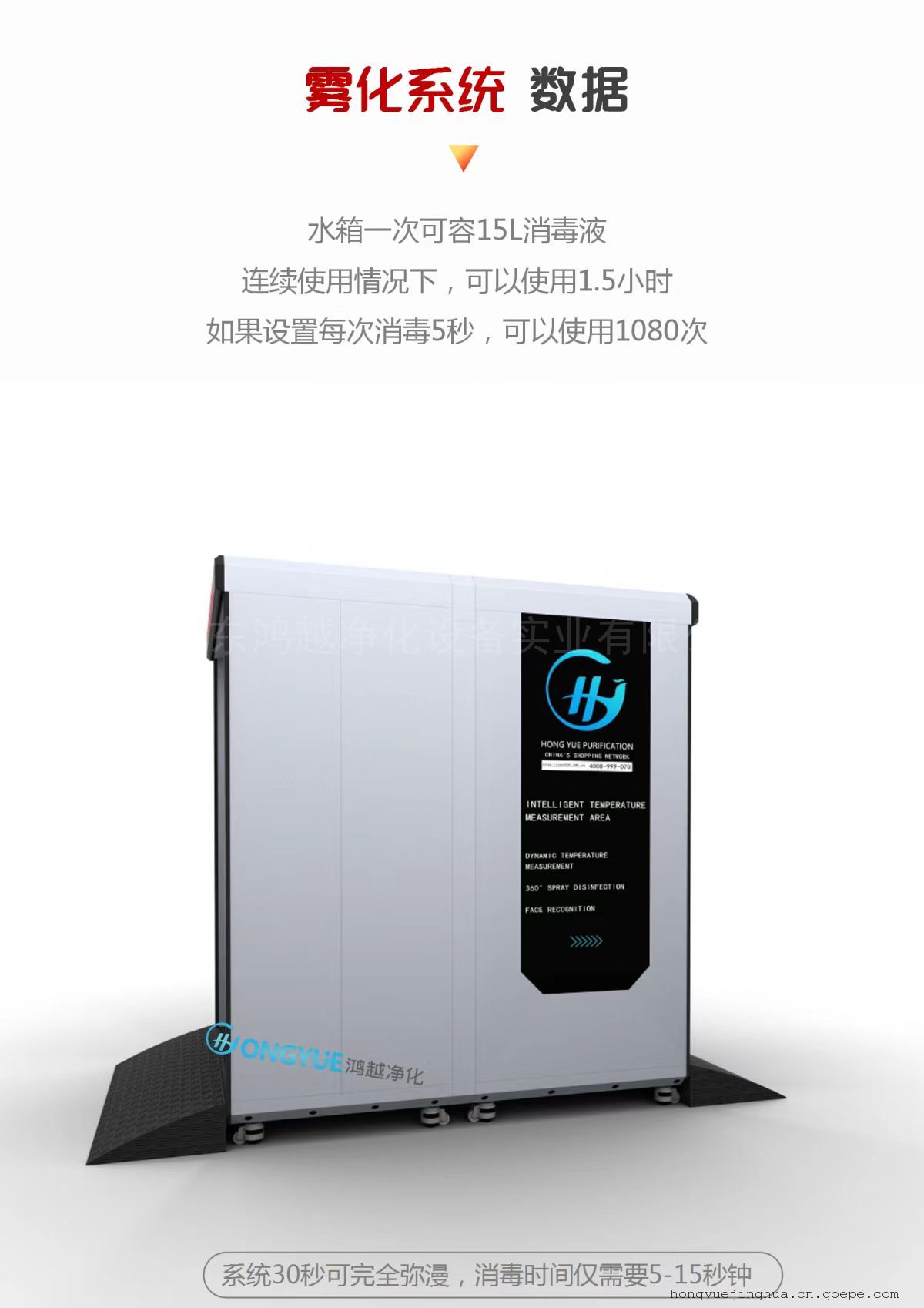

1. The intelligent ultrasonic atomization disinfection system atomizes the disinfectant into 1-10 micron disinfection particles through the atomization plate, and quickly adheres to the surface of the object to eliminate it. 2. The top spray design adopts 4 spray nozzles, and the spray head angle is adjustable. After atomization, the disinfectant is sprayed through the spray nozzle, quickly filling the whole space. 3. The control system adopts liquid crystal controller, automatic induction system, no need for personnel operation, atomization time 0~99S can be adjusted. 4. Atomization core is detachable atomization sheet, using ten atomization sheets, easy to replace, material 304 stainless steel, fast atomization, large amount of atomization. 5. Pattern can be customized, customized according to customer needs, left and right boxes have acrylic sealing plate combination, surface can be UV screen printing various patterns.

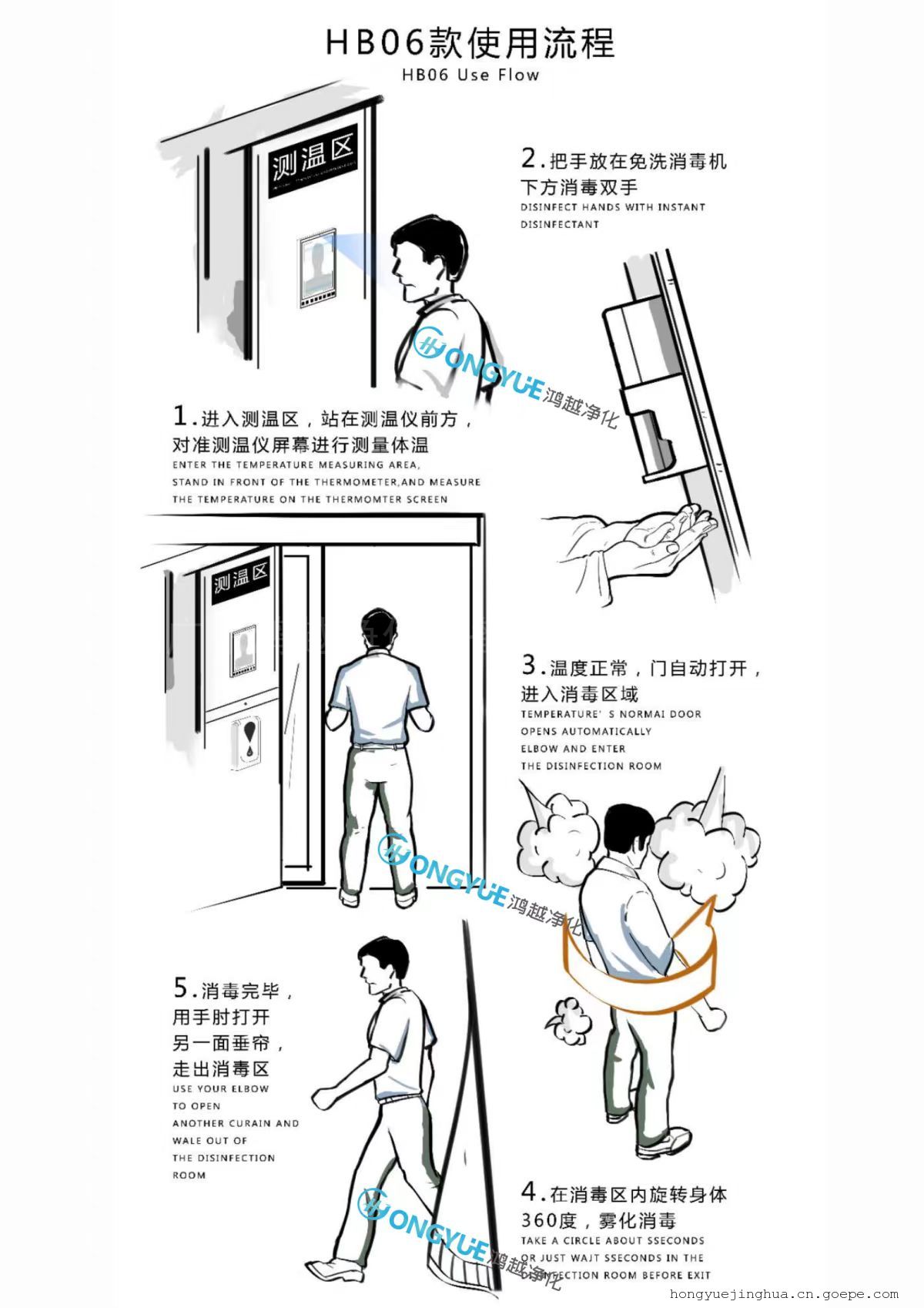

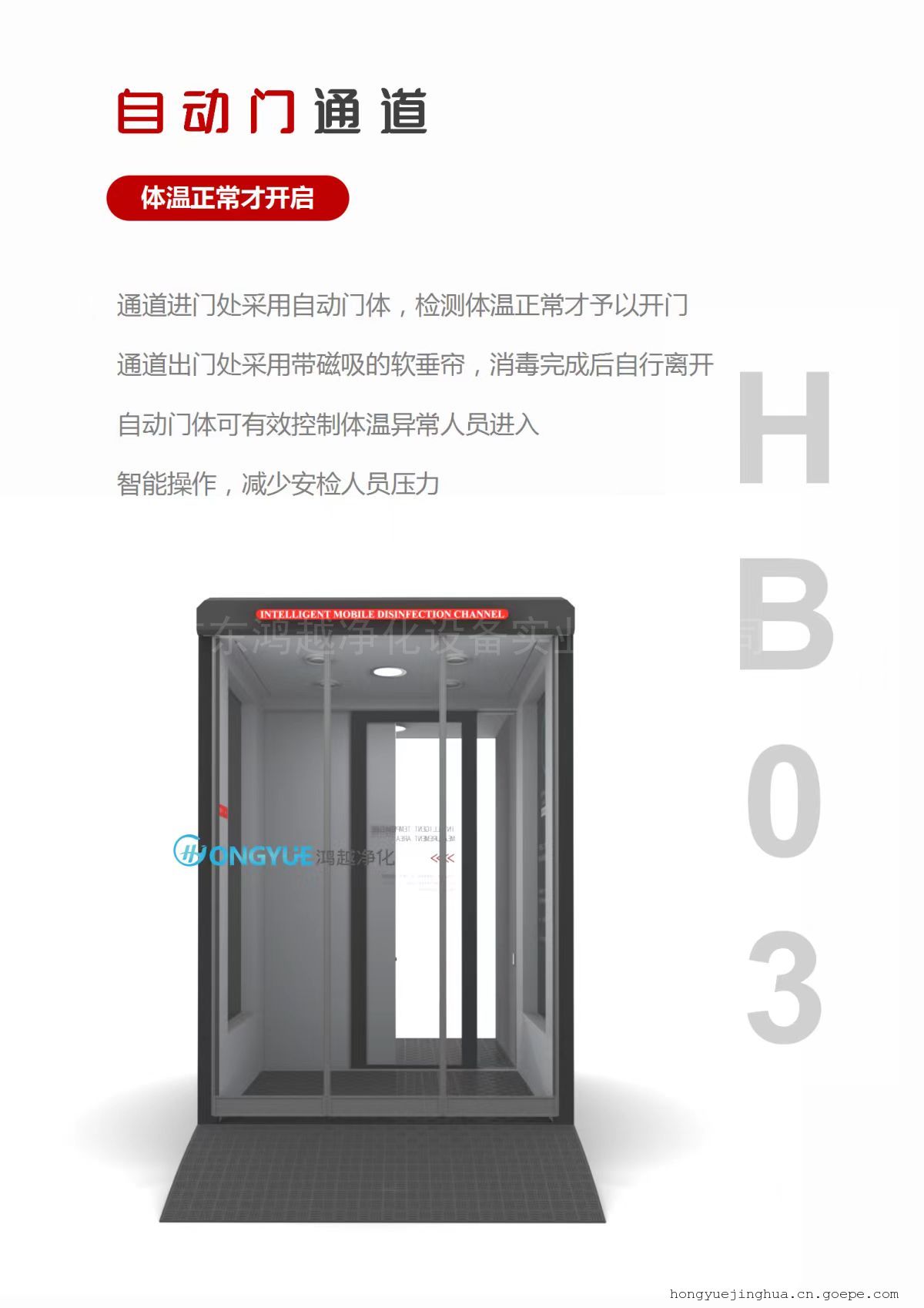

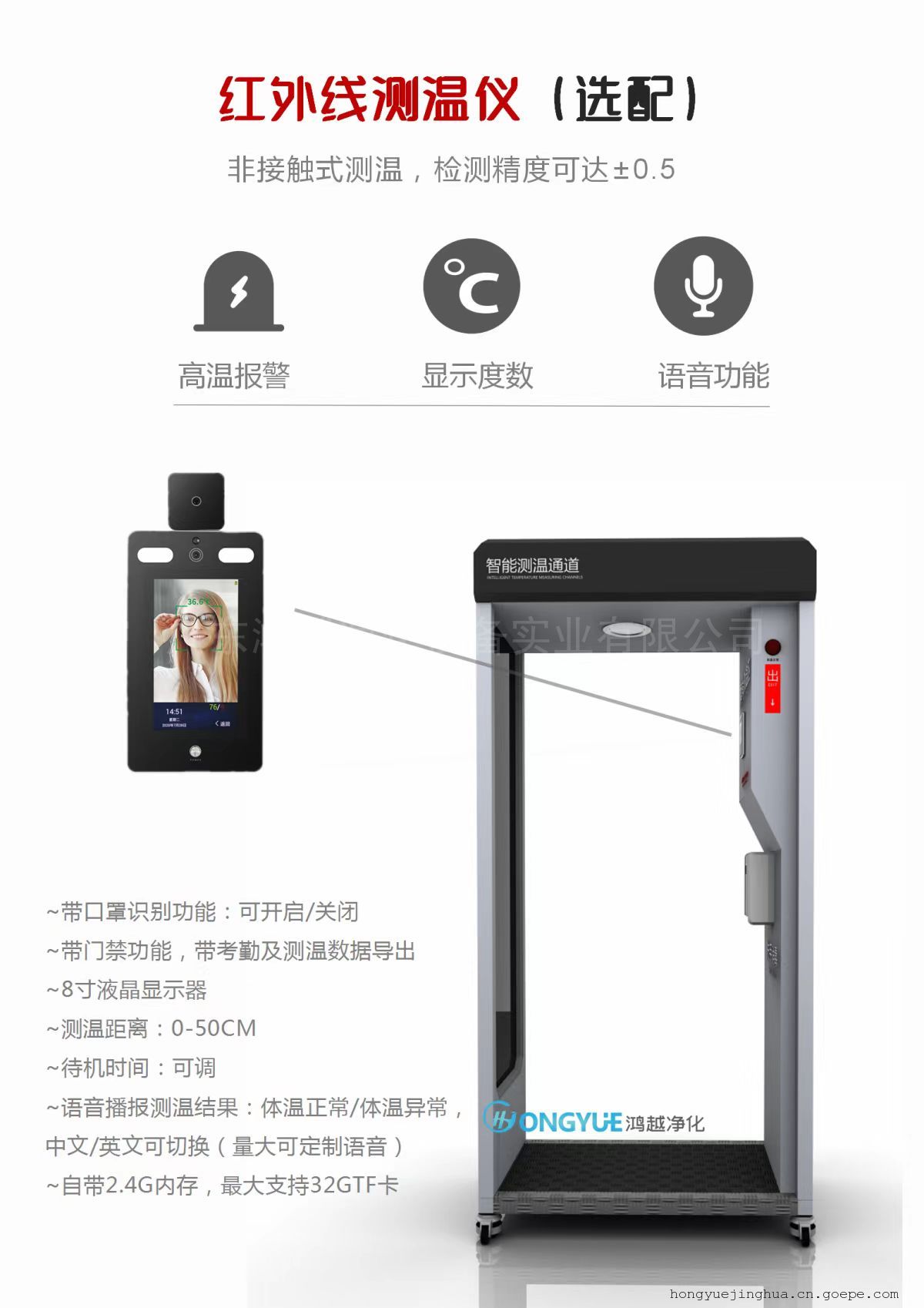

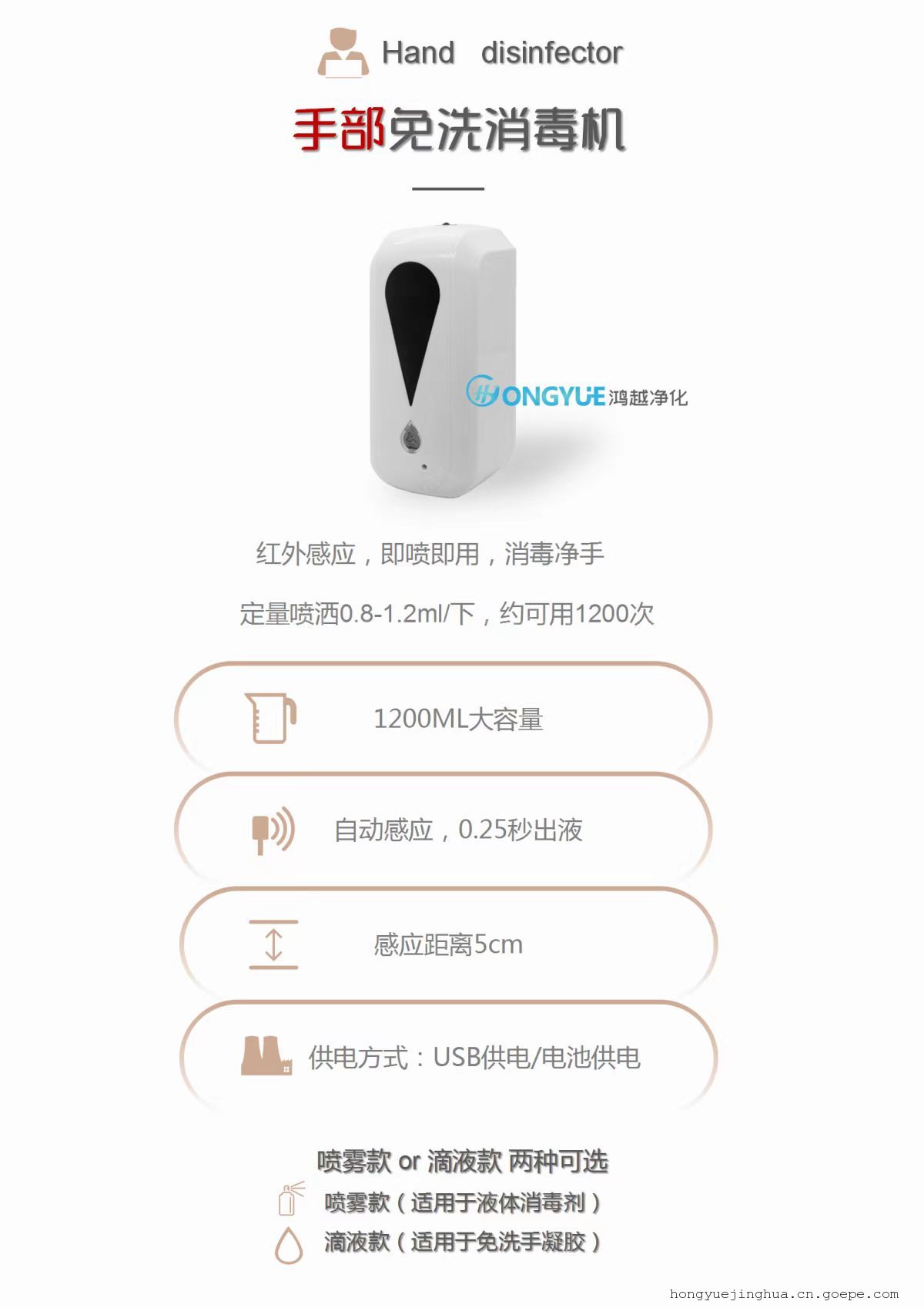

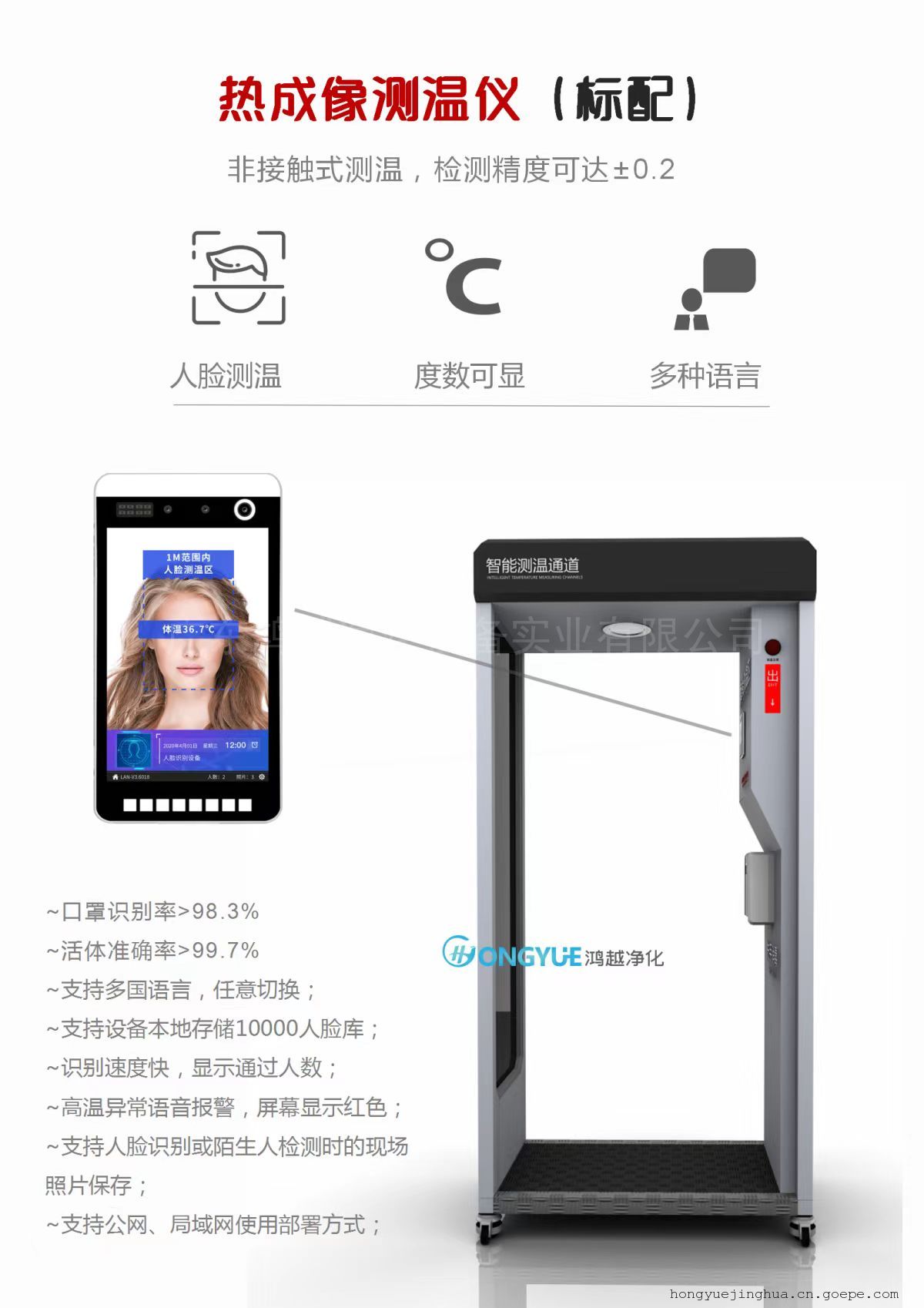

6. Thick PVC curtain is made of transparent PVC material to prevent leakage of fog. Each piece has magnets on the left and right sides, which are mutually adsorbed and sealed. There are heavy objects at the bottom. 7. Universal casters can be moved freely, easy to deploy, casters use Fuma universal wheel, adjustable foot height fixed displacement. 8. Thermal imaging temperature measurement system, thermal imaging temperature measurement, imported thermal imaging sensor 32X32 matrix, abnormal temperature alarm, temperature measurement range:25℃~45℃, 8-inch display screen shows body temperature. 9. Automatic translation door, temperature detection normal door automatically open, and with anti-pinch function, abnormal temperature door does not open and immediately alarm. 10. Hand disinfection machine, equipped with infrared sensor + intelligent chip, reach out to open and close, zero touch control, sensitive effect, long service life.
